GEGS
GESG MULTI-FUNCTION EXPERIMENT-ORIENTED STAINLESS STEEL MILLING DRUM
MAIN FUNCTION AND CHARACTERISTICS

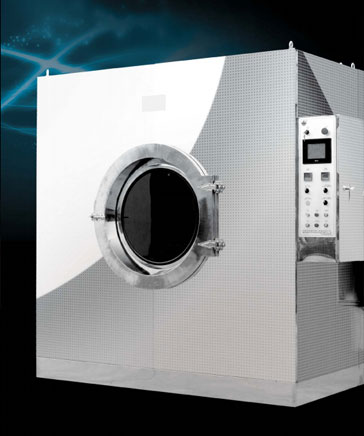

Multi-function experiment-oriented stainless steel milling drum looks like a dry cleaning machine in appearance.Drum non-welded shelves.The drum body proper is transparent with a door on it.The maximum diameter of the drum opening is 80cm.The programmed controller is functional for automatic rotation in positive and reverse direction,intermittent shutdown,single-direction rotation,and the stepless speed regulation.The temperature is adjustable at the range from normal temperature up to 85℃ with its preciseness at ±2℃.The machine can be shutdown for examination at any time without moving the casing,which is safe and convenient for operation.It is equipped with the high-pressure hot air circulation de-dusting system and automatic temperature and humidity control unit.After softening,the leather surface is clean and the grain is fine so that it feels full and tender.So the machine is the ideal equipment for the laboratory to use in softening the hides and furs and removing the dust thereof.


TECHNICIAL PARAMETERS
Model & Size GEGS-B
180×60
Dimension of drum body mm 1800×600
Volume m3 1.2
Drum speed rpm 20
Loading capacity kw 30
Main motor power kw 4
Electric heating power kw 9 When increasing temperature by electric heating
Fan power kw 2.2 High voltage with low noise
Pressure of compressed gas kg/cm3 ≥3
Cousumption of compressed gas m3/min 0.2 When increasing moisture by fog spraying
Water consumption m3/h 0.02 When increasing moisture by fog spraying
Temerature range -80 Set at any time
Humidity control range   30-90% Set at any time
Control form     PLC PLC touch screen
Outline dimension mm 1900×1250×2400
Floor space mm 1900×1250
